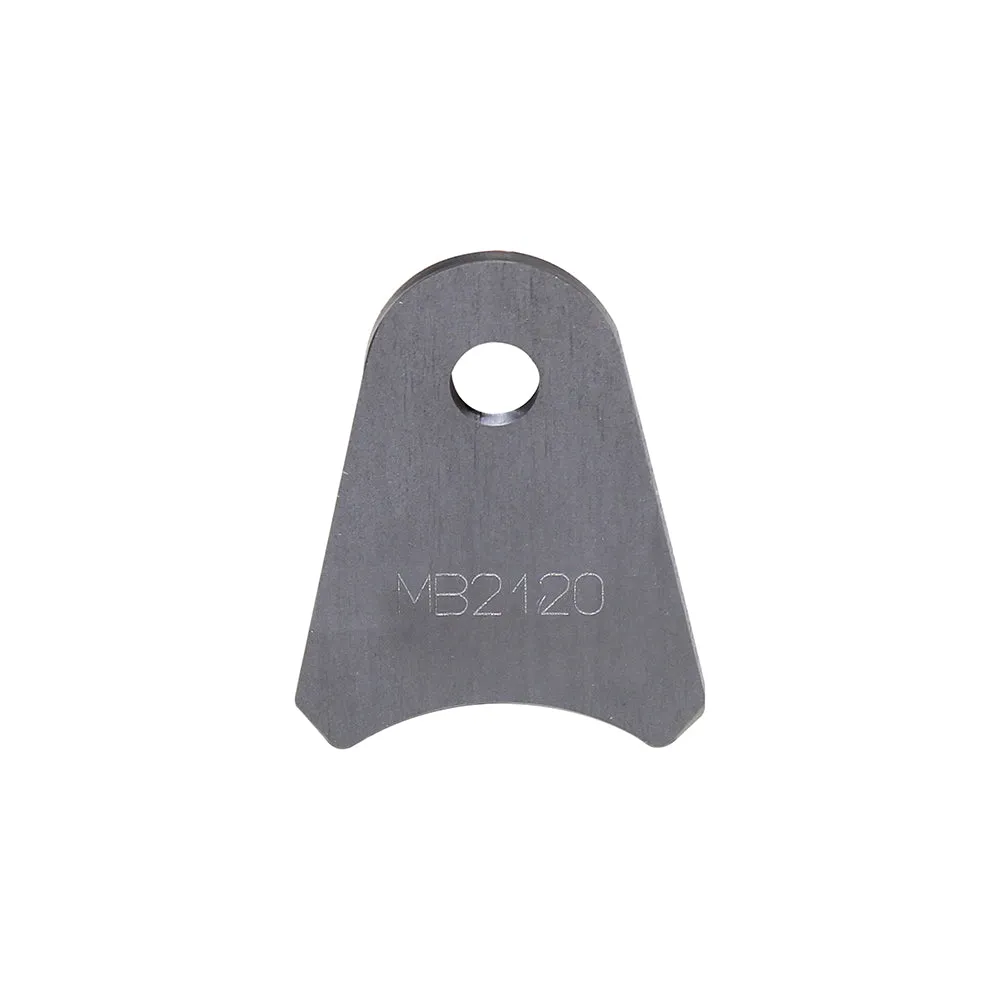

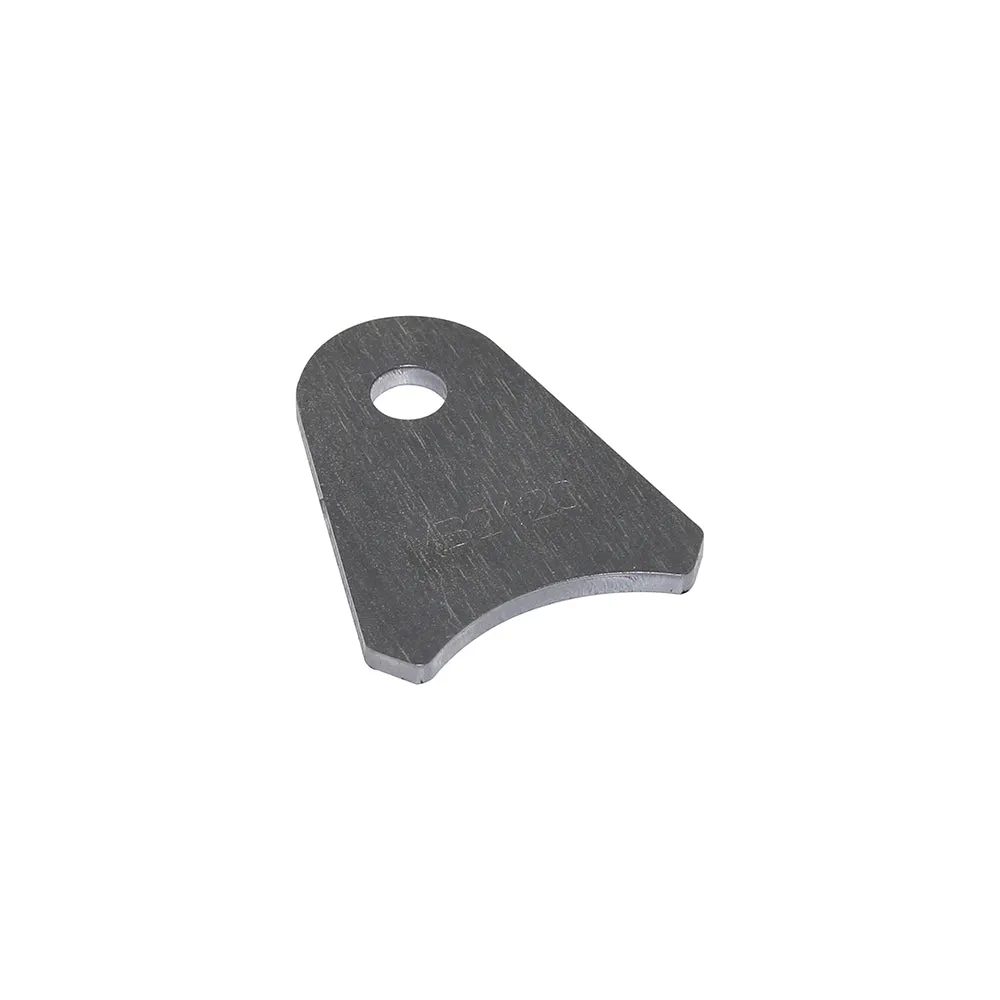

Precision laser cut from 3/16" high grade steel, this universal axle shock tab is a quick solution for mounting shocks directly to any axle.

The hole is 1/2" diameter. The lower portion of the tab is perfectly cut to fit a 3" diameter axle tube & can be ground to fit on 3-1/2" diameter axle tubes.

This shock tab is not intended for coil over shocks.

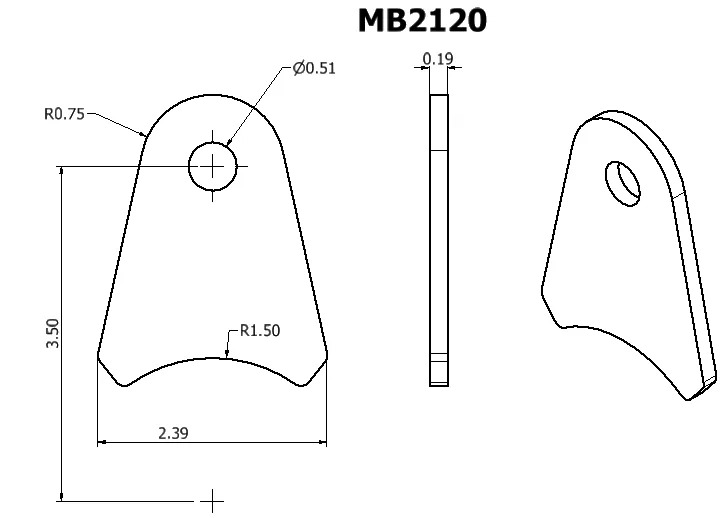

Please see our drawing for complete dimensional details.
